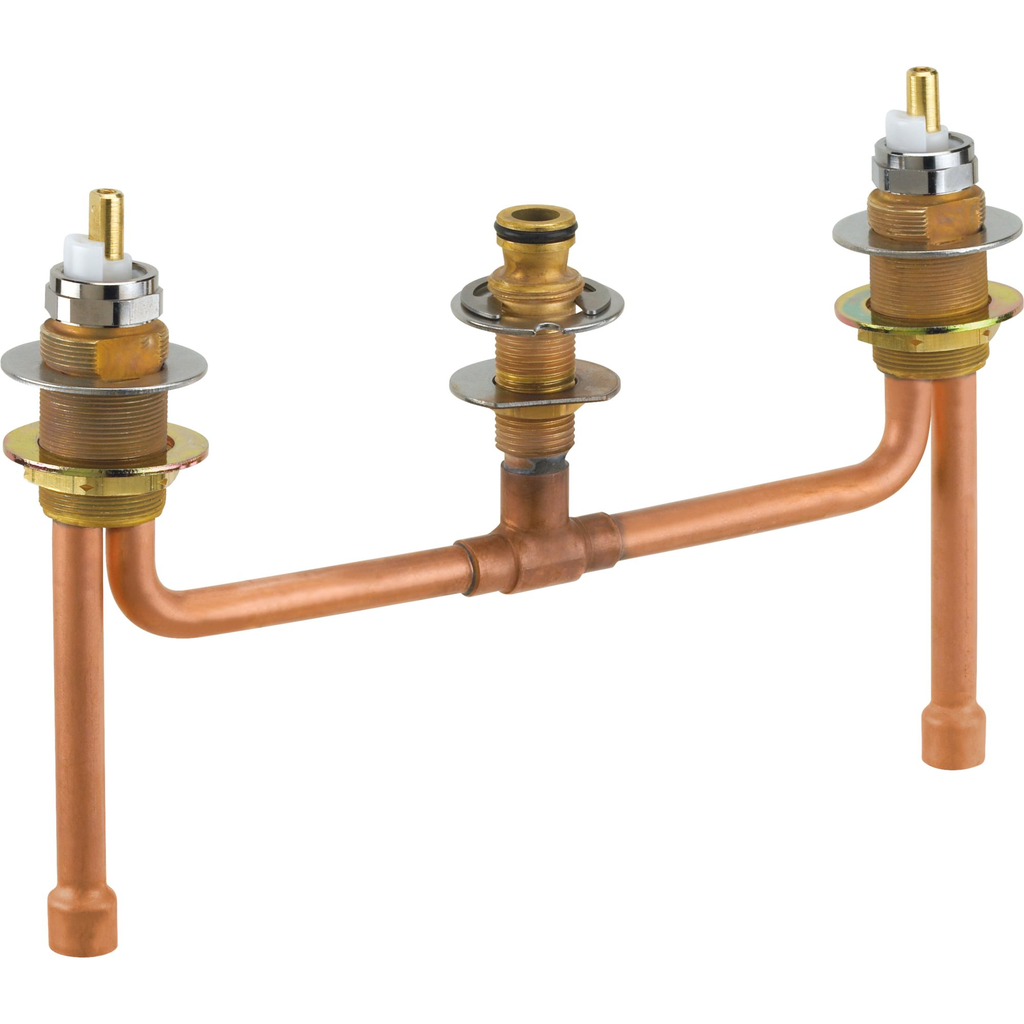

Delta R2709 Fixed Roman Tub Roughin
Features and Benefits
3-Hole Roman Tub Rough-in installation kit.

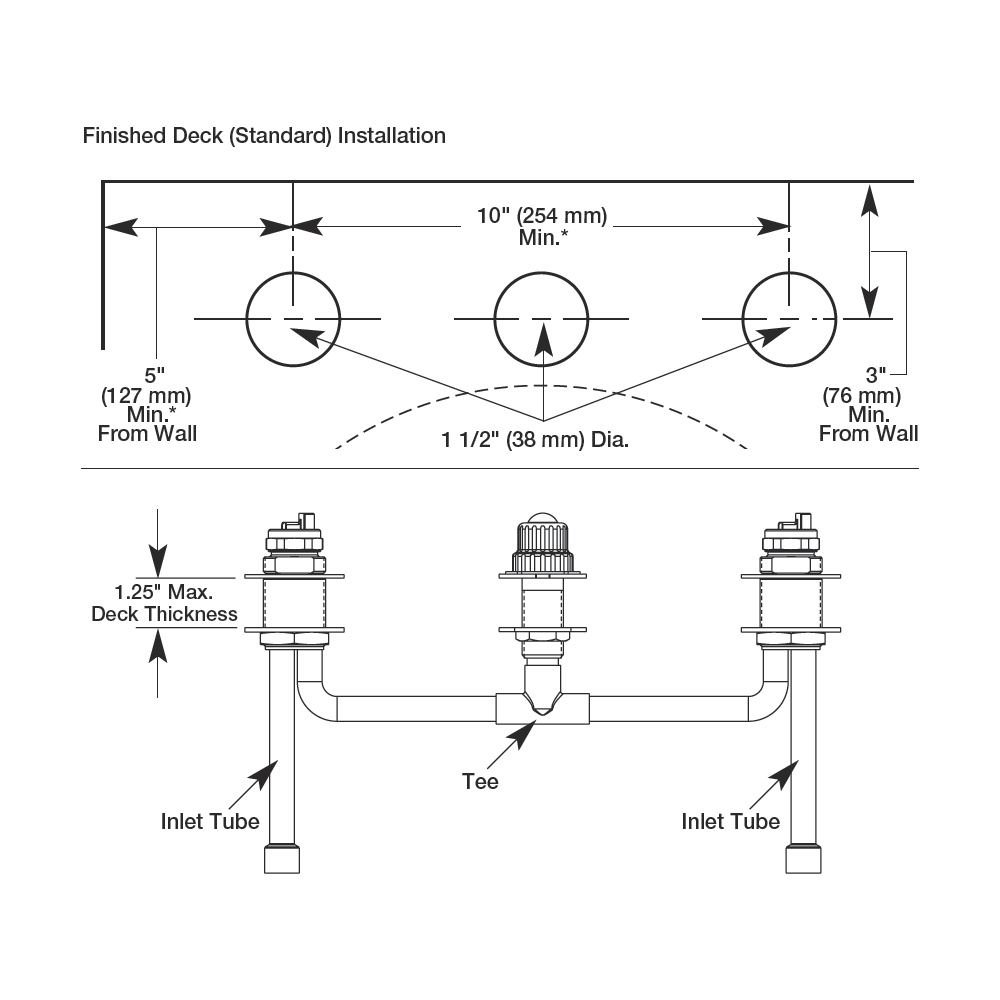

10 (254mm) fixed installation.
Adjusts to 1 1/4 (31.7mm) max. deck thickness.
No thick deck kit available.
Lifetime Faucet and Finish Warranty
STANDARD SPECIFICATIONS:
Washerless.
Three hole installation.
5/8"O.D.copper supply inlet tubes.
10" (254 mm) centers.
Deck or ledge mount installation.
Solid fabricated brass end valves and spout body.
Control mechanism shall be of the rotating cylinder type with stainless steel plate and 180rotation, with replaceable non-metallic seats operating in stainless steel lined sockets.
Hot and cold stems are interchangeable.
Temperature and volume controlled with handles.
All operating parts shall be replaceable from the top.
NOTE: Trim kit must also be ordered to complete installation. Refer to separate trim kit specifications to determine the best kit for your situation.
R2709-PX: Inlets are designed for use with ASTM F1807 copper crimp rings and ASTM F876/877 PEX tubing.
WARRANTY
Lifetime Faucet and Finish Limited Warranty to the original consumer purchaser to be free from defects in material and workmanship.
5 Year Limited Warranty for usage in all industrial, commercial and business applications.
