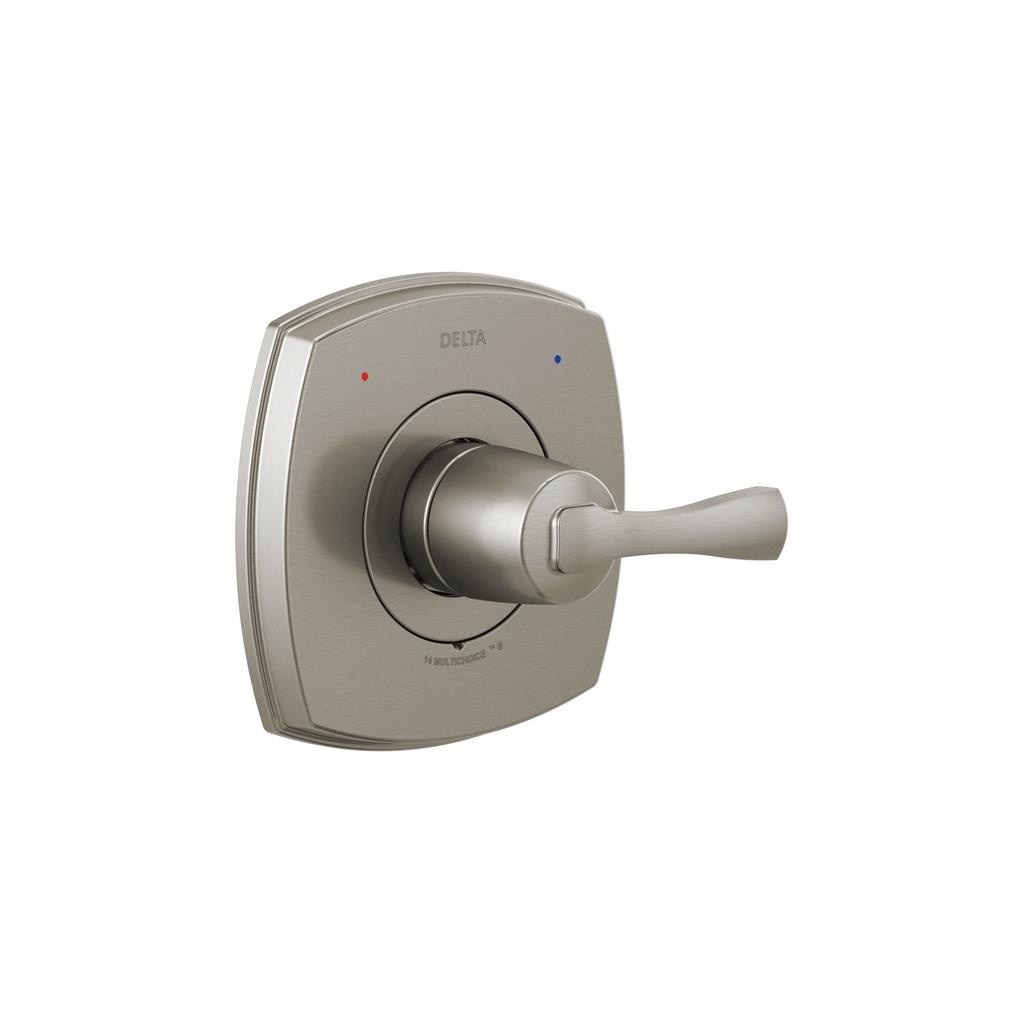

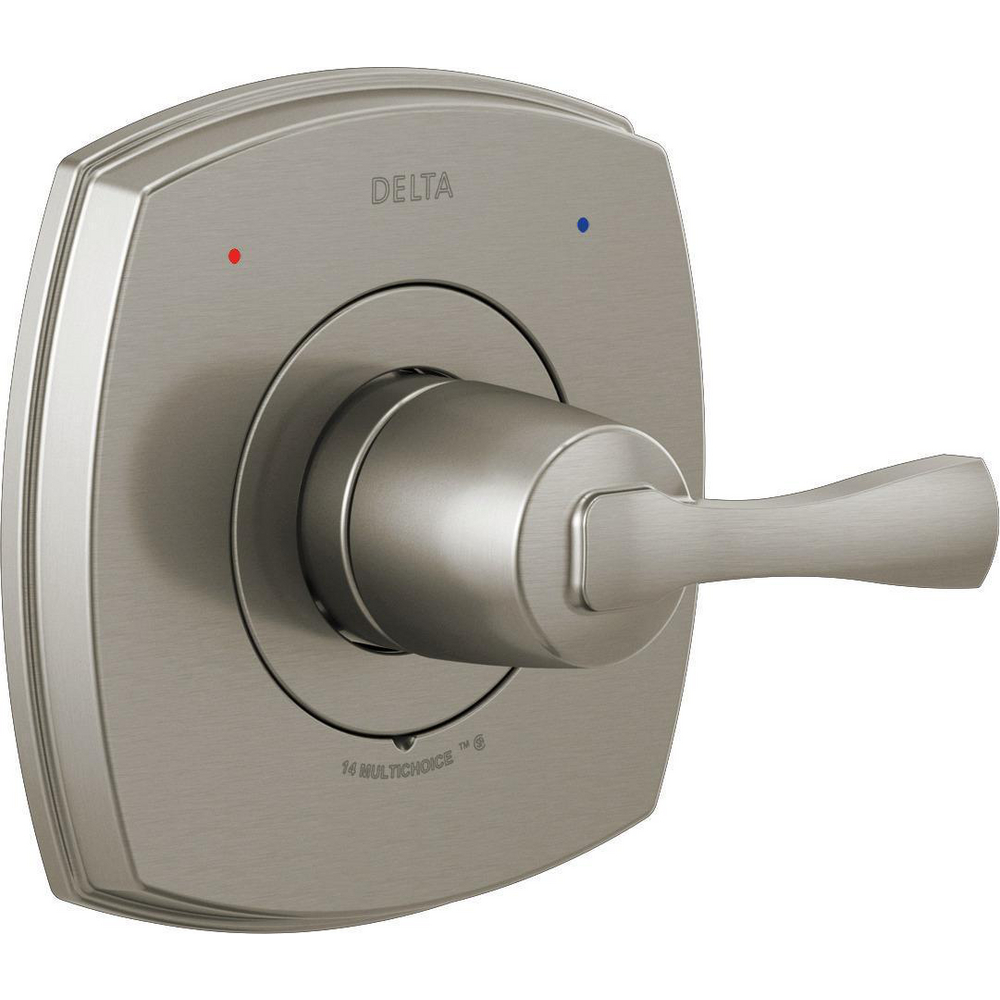

Delta T14076 Stryke 14 Series Valve Only Stainless
STRYKE COLLECTION
With subtly upturned spout and handles, the Stryke Bath Collection radiates confidence and composure with an assured stature and ascending contours.
Trim kit only, must purchase rough-in R11000 separately to complete the unit
Monitor pressure balance valve keeps water temperature within a safe 3 F (1.6 C), helping to protect you from sudden changes in hot or cold water pressure
Back-to-back installation capability
Temperature only controlled with handle
120 maximum handle rotation
All parts replaceable from the front of the valve
Red/blue pad print temperature indicator on the shower escutcheon
ADA Compliant metal lever handle
Chrome's stunning gloss and innate versatility lend to its popularity across decor styles in the bath
Pair chrome with crisp lines and bright whites for a bold, modern contrast or convey a hint of nostalgia in vintage spaces
Lifetime Faucet and Finish Warranty
STANDARD SPECIFICATIONS:
Maintains a balanced pressure of hot and cold water even when a valve is turned on or off elsewhere in the system
For use with MultiChoice Universal rough valve body (R10000 Series)
Back-to-back installation capability
Temperature only controlled with handle
Field adjustable to limit handle rotation into hot water zone
120 maximum handle rotation
All parts replaceable from the front of the valve
Maximum 1.75 gpm @ 80 psi, 6.6 L/min @ 550 kPa
Tub port maximum flow rate 6.0 gpm @ 60 psi with R10000-UNBX

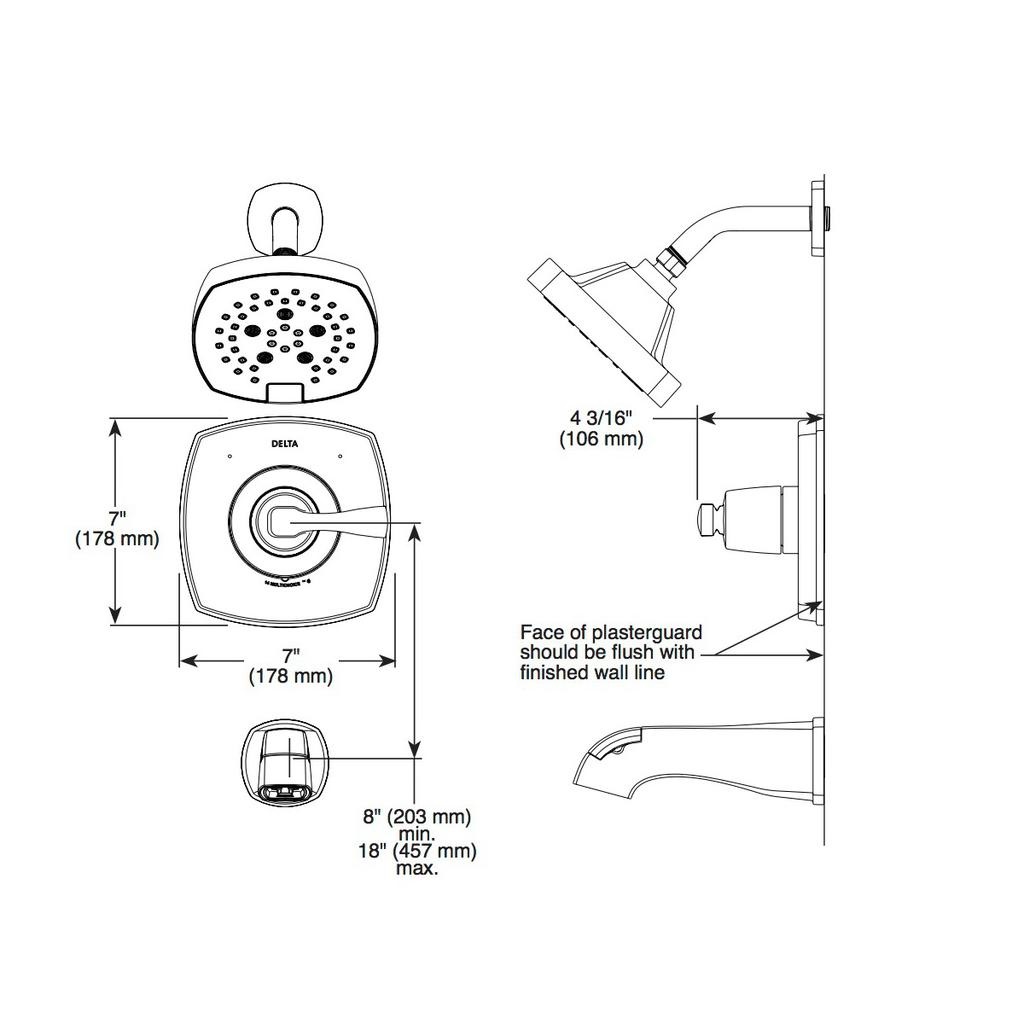

Shower arm overall horizontal length = 5 1/2" (138 mm), including threaded ends
Red/blue pad print temperature indicator on the shower escutcheon
"-LHD" models indicate less shower head
Stem extension kit RP77991 can be ordered to allow for an additional 1 3/4" wall thickness. RP77991 ships with chrome escutcheon screws. For special finishes also order RP12630 escutcheon screws in desired finish
WARRANTY
Lifetime limited warranty on parts (other than electronic parts and batteries) and finishes: or, for commercial users, for 5 years from date of purchase.
5 year limited warranty on electronic parts (other than batteries); or, for commercial users, for 1 year from the date of purchase. No warranty is provided on batteries.
