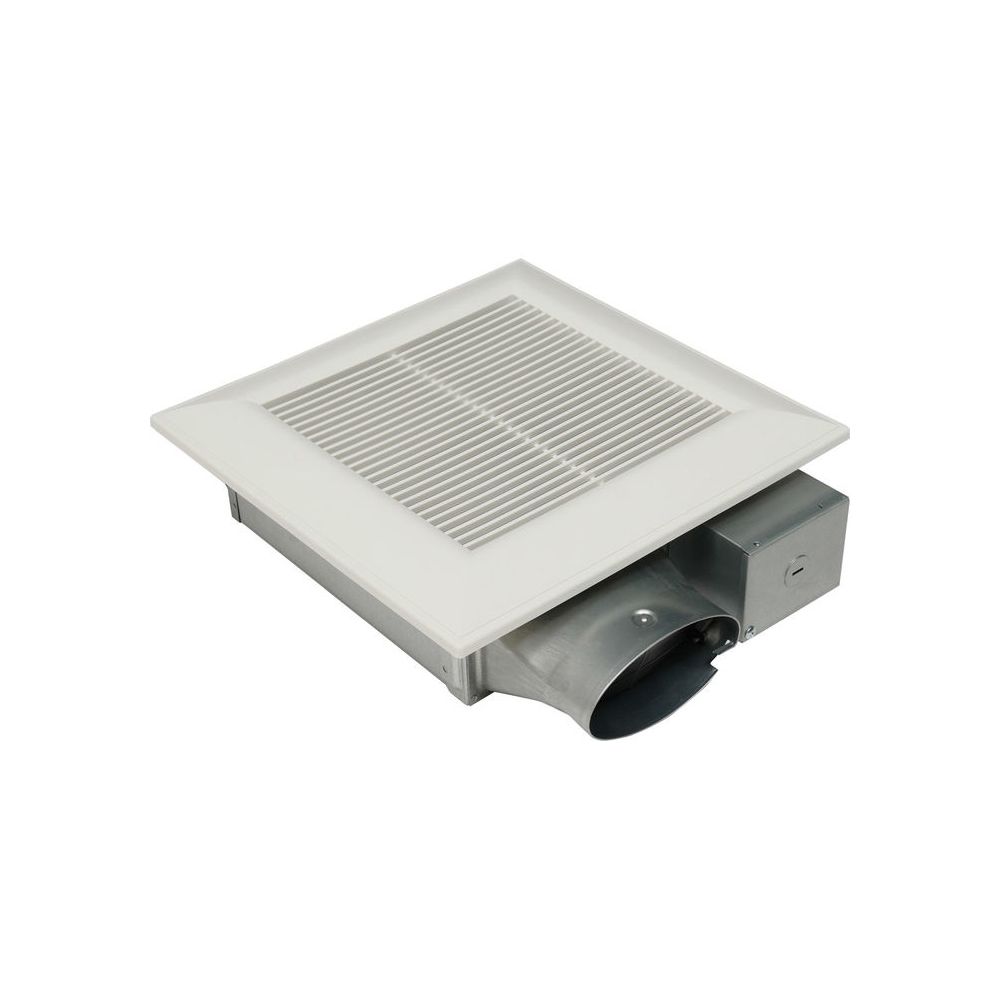

Panasonic FV-05-10VS1 WhisperValue 50-100CFM Fan
WhisperValue DC The ideal Multi-Family Solution, 50-80-100 CFM | FV-0510VS1
WhisperValue DC is the lowest profile ENERGY STAR rated ventilation fan available. Ideal for residential construction (Single & Multi-Family) and Manufactured Homes. It features Panasonics revolutionary DC motor with SmartFlow optimum CFM technology, and incorporates a Pick-A-Flow speed selector switch to customize airflow (50, 80 or 100 CFM).
DC Motor - The Best Performing, Most Energy Efficient Motor Available
The revolutionary DC motor with intelligent self-adjusting SmartFlow technology senses the amount of resistance in the duct run and automatically adjusts the fan speed to deliver the optimal CFM output, even in the case of a complicated duct run. The Panasonic DC motor with SmartFlow technology moves more air using less energy, so the fan is more energy efficient and lasts longer.
Pick-A-Flow Speed Technology - One Fan, You Choose The CFM
Built-in Pick-A-Flow speed selector provides the unique ability to select your required airflow (50-80-100 CFM) with the simple flip of a switch. Being able to choose the proper CFM level gives you the flexibility and assurance that one fan will satisfy a range of ventilation design requirements and perform as promised, even with a complicated duct run.
ENERGY STAR Certified for Energy Savings
Panasonic ventilation fans are ENERGY STAR certified, where guidelines exist. ENERGY STAR vent fans meet strict parameters set by the US Environmental Protection Agency (EPA). They provide better efficiency and comfort with less noise, and feature high performance motors and improved blade design, providing better performance and longer life.
UPC: 8 85170 30629 5
Air Volume Exhaust (CFM): 50 @ 0.1" SP, 53 @ 0.25" SP, 80 @ 0.1" SP, 81 @ 0.25" SP, 100 @ 0.1" SP, 100 @ 0.25" SP
Noise (Sones): 50 @ 0.1" SP = < 0.3, 53 @ 0.25" SP = 0.5, 80 @ 0.1" SP = less than 0.4, 81 @ 0.25" SP = 0.8, 100 @ 0.1" SP = 0.9, 100 @ 0.25" SP = 1.3
Power Consumption (Watts): 50 CFM= 4.4W, 80 CFM= 7.2W, 100 CFM=11.1W
Energy Efficiency (CFM/Watt): 50 CFM= 12.8 CFM/W, 80 CFM=11.4 CFM/W, 100 CFM = 9.2 CFM/W
Current (Amps): 50 CFM= .09A, 80 CFM= .13A, 100 CFM=.20A
Power Rating (V/Hz): 120/60
Motor Type (AC/DC): DC
Duct Diameter: 4" Oval
Installation: Ceiling Mount, Wall Mount (UL), Tub/Shower (UL)
Radiation Damper Available: Yes
Mounting Opening (in sq.): 10-1/2"
Grille Size (in sq.): 13"
ENERGY STAR Certified: Yes
Other Approved Codes and Standards: ASHRAE 62.2, LEED, California Title 24, Washington VIAQ
UL Listed for Tub/Shower Enclosure when GFCI Protected: Yes
Warranty: 6 year DC Motor, 3 Year Parts
Master Carton Dimensions (HxWxL): 6.89 x 14.25 x 16.73
Master Carton Gross Weight (lbs.): 8.82
Construction Type:
Single Family/ Manufactured Housing
Multi-Family
Hospitality/Assisted Living/ Student Housing
Renovation/Remodeling
