TOTO CWT449249CMFG SP Wall Hung Toilet With In-Wall Tank System White
SKU: CWT449249CMFG#MS
SP WALL-HUNG TOILET & IN-WALL TANK SYSTEM - 1.28/0.9 GPF
Because it's wall-mounted, this toilet takes up less floor space, giving your bathroom a more open feeling and making it easier to clean. Modern design, with our DYNAMAX TORNADO FLUSH system (see Smartfact below). Universal height.
FEATURES
DYNAMAX TORNADO FLUSH system High-Efficiency (1.28/0.9 GPF)
CEFIONTECT ceramic glaze - prevents debris and mold from sticking to ceramic surfaces
Universal Height
Square-Shaped front bowl
High-Efficiency Dual Flush (Avg. Flush 1.03 GPF)
Adjustable 15" - 19" mounting height
Saves up to 9" of floor space compared to standard floor-mounted toilet
Supports up to 880 lbs.

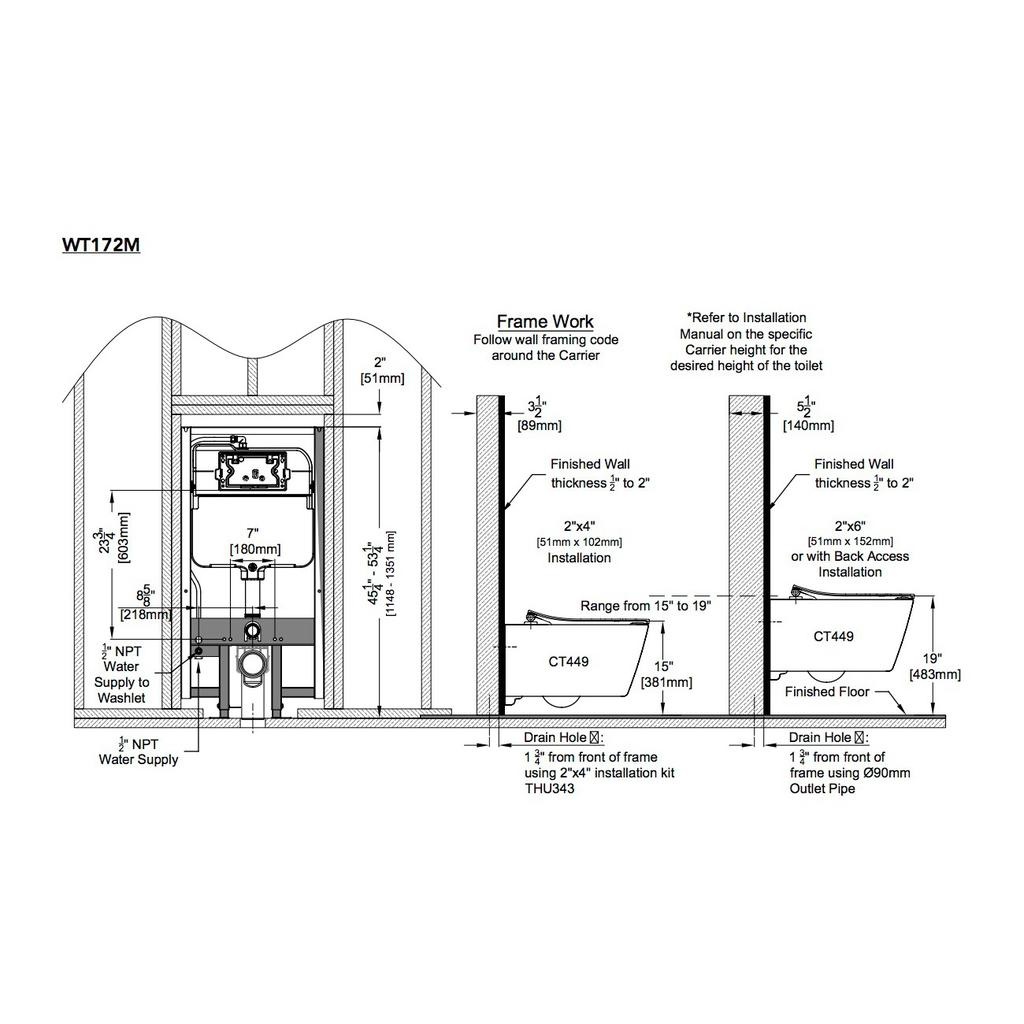

Commercial 2" x 6" or optional residential installation with 2" x 4" wall studs with waste outlet kit
Copper Supply line
Includes Push Plate YT920#WH or YT920#MS
SP Bowl
DYNAMAX TORNADO FLUSH system, high efficiency (1.28GPF/0.9GPF)
CEFIONTECT ceramic glaze - prevents debris, mold from sticking to ceramic surfaces
Universal Height
Square shape front bowl
SoftClose Seat
Square shape closed front toilet seat and cover with SoftClose hinge system
Mounting hardware included
Made from urea-resin
Quick release hinges for easier cleaning

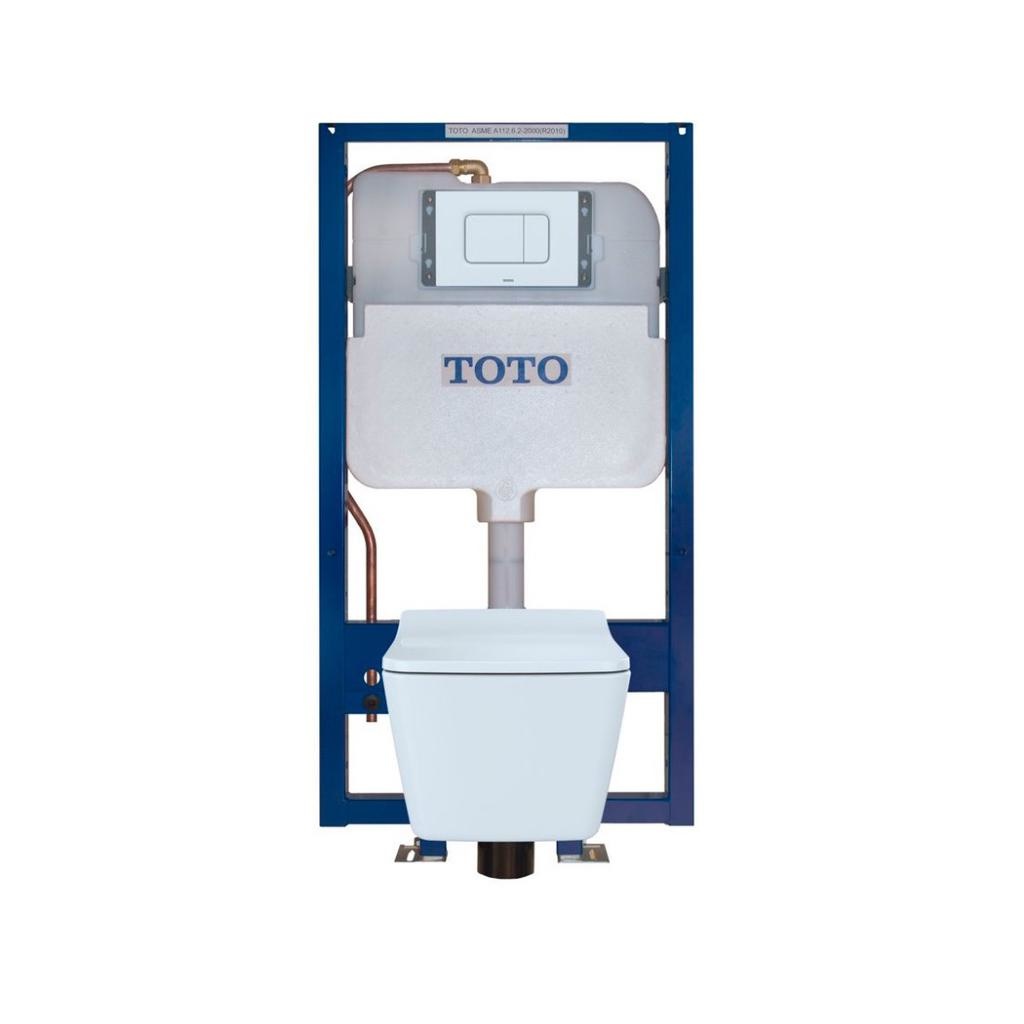

DuoFit In-Wall Tank
High-efficiency dual flush 1.28 & 0.9 GPF (4.8 & 3.4 LPF) Avg. flush 1.03 GPF
Adjustable 15"-19" mounting height
Saves up to 9" of floor space compared to standard floor-mounted toilet
Supports up to 880lbs
Commercial 2" x 6" or optional residential installation with 2" x 4" wall studs with waste
outlet kit
Copper supply line
Push Plate
Basic Square Push Plate - YT920#WH (White Matte) or YT920#MS (Matte Silver)
Water Use
1.28GPF & 0.9GPF (4.8LPF & 3.4LPF)
1.28GPF & 0.9GPF (4.8LPF & 3.4LPF)
Flush System
DynaMax TORNADO FLUSH DUAL-MAX
Min. Water Pressure
8 psi (static) 8 psi (static)
Water Surface 5-1/2" X 4-1/8" Trap Diameter 2-1/8"
Installation Height 15" to 19" 15" to 19" Trap Seal 2-1/8"
Warranty
One Year Limited Warranty
One Year Limited Warranty
One Year Limited Warranty
Material Vitreous China Urea-Resin Various
Shipping Weight 68 lbs 9 lbs 38 lbs
Shipping Dimensions
22" L x 14.6" W x 16.5" H
20-5/8" x 19-1/8" x 3-1/4"
48" L x 26-1/2" W x 6" H
CAD Drawing - CWT449249CMFG
Spec Sheet - CWT449249CMFG
Installation & Owner's Manual - CWT449249CMFG
CeFiONtect Cleaning Instructions
Spare Parts Manual - CWT449249CMFG
