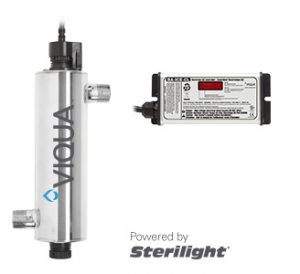

Viqua VH200 Whole Home UV Water Disinfection System
Equipped to inactivate chlorine-resistant parasites such as Cryptosporidium and Giardia, harmful bacteria like E.Coli, and viruses not visible to the naked eye.
Specially designed and tested Sterilume-EX and -HO lamps provide consistent and reliable ultraviolet output over the entire life of the lamp (9000 hours) to ensure continuous purification.
The system is simple to maintain and service allowing for easy lamp replacement.
Built with a durable stainless steel chamber to prolong life and eliminate ultraviolet light degradation.
Part Number: VH200, VH200/2, VH200/2A, VH200/2B
Ideal For: Bacteria
Flow Rate: 9 gpm
Product Details
The VH200 system is a reliable, economical and chemical-free way to safeguard drinking water in any residential application, with flow rates up to 9 gpm (34 lpm).
Benefits:
Space Efficient: High UV output lamp technology allows for a smaller footprint while providing the same UV performance as a longer chamber.
Ease of Maintenance: Audible lamp replacement reminder and countdown timer with digital display. A controller will also go into alarm if the lamp fails.
Reliable: The constant current feature ensures stable UV lamp output, regardless of power fluctuations.
High-performance UV lamp, rigorously tested to provide a consistent output over the entire lamp life (9000 hours).
Application: Perfect for a wide range of whole-home, point-of-entry water treatment solutions in homes, cottages, or OEM applications.
Note: The VH200 replaces the Sterilight SC200 system.
Features & Specs
Disinfection Flow Rates
16mJ/cm2: 16 GPM (60 lpm) (3.6 m3/hr)
30mJ/cm2: 9 GPM (34 lpm) (2.0 m3/hr)
40mJ/cm2: 7 GPM (26 lpm) (1.6 m3/hr)
Specifications
Dimensions: 17 3/4 x 3 1/2 (45 cm x 8.9 cm)
Shipping Weight lbs (kg): 12 lbs (5.4 kg)
Connection Size: 3/4- 1 MNPT COMBO (/2B - BSP)
Power Consumption: 35W
Replacement Parts
QL-200 Lamp and Quartz Sleeve Combo Pack
S200RL-HO Replacement UV Lamp
QS-001 Replacement Quartz Sleeve
BA-ICE-CL Replacement Controller
