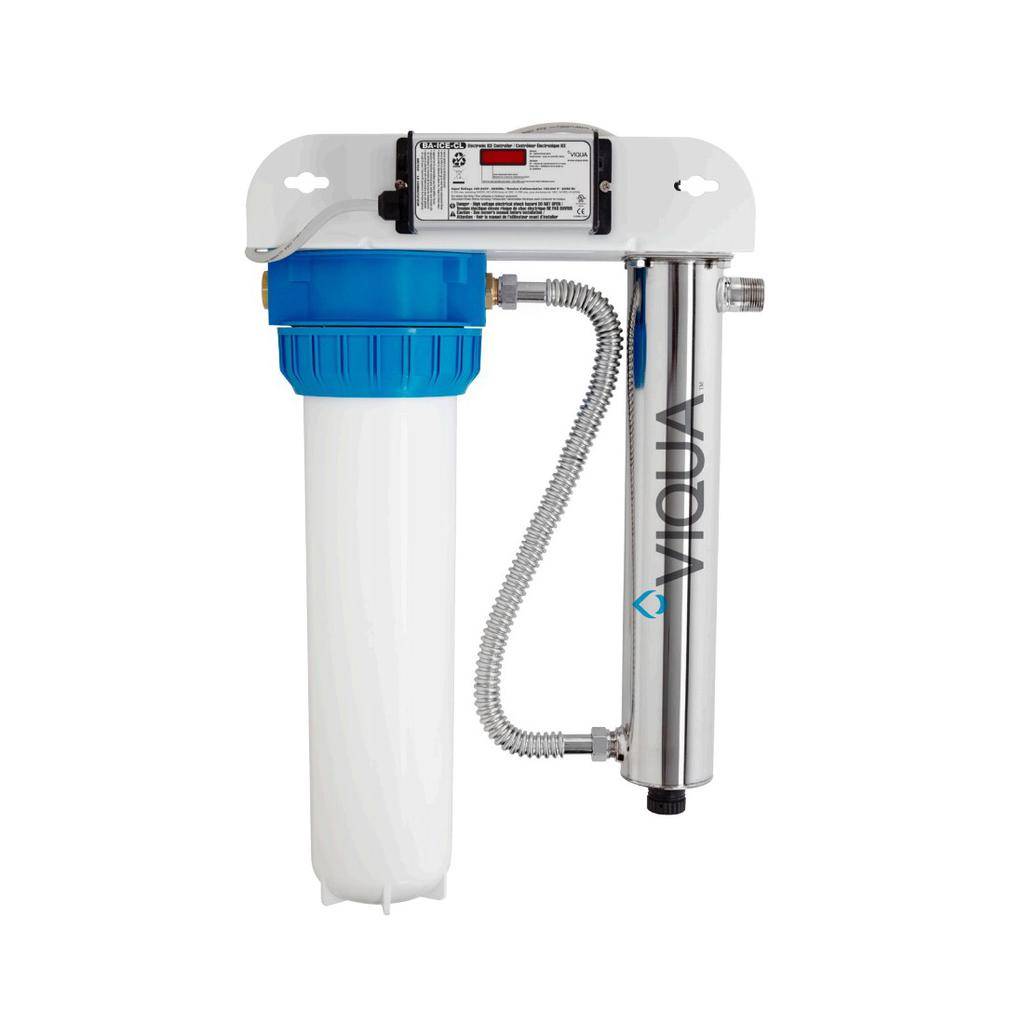

Viqua VH410-F20 Whole Home Integrated Pre Filtration UV
Equipped to inactivate chlorine-resistant parasites such as Cryptosporidium and Giardia, harmful bacteria like E.Coli, and viruses not visible to the naked eye.
Specially designed and tested Sterilume-HO lamps provide consistent and reliable ultraviolet output over the entire life of the lamp (9000 hours) to ensure continuous purification.
The system is easy to maintain and service with easy lamp and cartridge replacement.
Safety-Loc connector with interlock that ensures power is disconnected before lamp can be removed, hidden ground wire.
Built with a durable stainless steel chamber to prolong life and eliminate ultraviolet light degradation.
Part Number: VH410-F20, VH410-F20/2, VH410-F20/2A, VH410-F20/2B
Ideal For: Bacteria
Flow Rate: 18 gpm
Product Details
Powerful, yet compact UV disinfection system with pre-filtration designed for the larger home or light commercial application, for flow rates up 18 gpm (70 lpm).
Benefits:
Pre-Filter Solution: Adds integral 5 micron pre-filtration module to the VH410 UV system. Click here to find out more about our high-performance sediment cartridges
Ease of Maintenance: Audible lamp replacement reminder and countdown timer with digital display. Controller will also go into alarm if the lamp fails
Convenient: Mounted on a reversible, heavy duty, painted steel bracket for installation flexibility
Reliable: The constant current feature ensures stable UV lamp output, regardless of power fluctuations
Space Efficient: High UV output lamp technology allows for a smaller footprint, while maintaining the same UV dose as a longer chamber
Reliable: High-performance UV lamp, rigorously tested to provide consistent output over the entire lamp life (9000 hours)
Application: Perfect for a wide range of whole-home, point-of-entry water treatment solutions in homes, cottages, or OEM applications
Features & Specs
Disinfection Flow Rates
16mJ/cm2: 34 GPM (130 lpm) (7.8 m3/hr)
30mJ/cm2: 18 GPM (70 lpm) (4.2 m3/hr)
40mJ/cm2: 14 GPM (54 lpm) (3.3 m3/hr)
Specifications
Dimensions: 17 x 10 1/2 x 28 (43 cm x 26 cm x 71 cm)
Shipping Weight lbs (kg): 32 lbs (14.5 kg)
Connection Size: 1MNPT INLET / 1 x 3/4 COMBO OUTLET (/2B - BSP)
Power Consumption: 60W
Replacement Parts
QL-410 Lamp/Quartz Sleeve Combo Pack
CMB-520-HF Sediment Filter
S410RL-HO Replacement UV Lamp
QSO-410 Replacement Quartz Sleeve
